Program eMMC

Home Start Here Hardware Software Program eMMC Resources

The scripted Yocto build process will generate a WIC image file with the partition layout as shown in the image below.

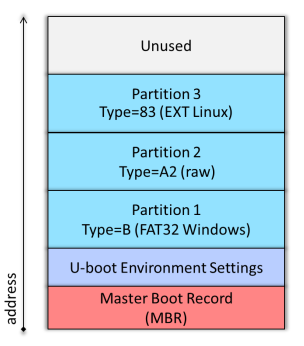

Achilles Yocto eMMC Mapping

A script is available to make the eMMC programming process easier. The script can be run as part of the full GSRD build process by running the GSRD build script (see the Start Here page), or it can run independently. This script can run in Linux or Windows (using Nios II Command Shell or WSL shell). To manually download and run the script:

wget https://raw.githubusercontent.com/reflexces/build-scripts/2023.07/program-emmc.sh
chmod +x program-emmc.sh
./program-emmc.sh

The table below summarizes the files included in the WIC image and how each file is generated. The latest released version of each of these files can be downloaded from the meta-achilles github release page

File Name Description Partition Source of File
achilles-console...rootfs.tar.gz Poky root filesystem Partition 3 (EXT4) Yocto build
u-boot-splx4.sfp SPL image with devicetree Partition 2 (A2) Yocto build or U-Boot make
socfpga_arria10_achilles.dtb Devicetree binary Partition 1 (FAT) Yocto build or dtbs make
achilles_ghrd.core.rbf FPGA core configuration file Partition 1 (FAT) quartus_cpf after Quartus GHRD build
fit_spl_fpga_periph_only.itb FPGA periphery FIT image Partition 1 (FAT) U-Boot mkimage
fit_spl_fpga.itb FPGA core FIT image Partition 1 (FAT) U-Boot mkimage
zImage compressed Linux kernel image Partition 1 (FAT) Yocto build or kernel make
u-boot.img U-Boot binary image Partition 1 (FAT) Yocto build or U-Boot make
extlinux/extlinux.conf boot configuration file Partition 1 (FAT) Yocto build (achilles.conf)

The precompiled WIC image can be downloaded from here, or they can be downloaded automatically by using the programming script:

Older releases for Turbo SOM
File Name Release md5sum
achilles-console-image-achilles.wic v1.0 50b0461de133ac014e1280eede02550e
achilles-console-image-achilles.wic v2021.08 768cc168c3749e556b43ae7a05577769
achilles-console-image-achilles.wic v2021.12 d30dc277e67ad4ee68b9bd14b2b606b1
Older releases for V2 SOM versions
File Name Release md5sum
achilles-console-image-achilles-turbo.wic v2022.06 fe1a5445808a1029574eca0b013a0032
achilles-console-image-achilles-indus.wic v2022.06 420b95936f74404c27a7a457b268fe40
achilles-console-image-achilles-lite.wic v2022.06 d7d63cb45205b522050c4b3f04ba2b7d
Latest releases for all SOM versions
File Name Release md5sum
achilles-console-image-achilles-v2-indus.wic kirkstone-2023.07 39bf9e40d72f77f59d3df6ac46fb2cea
achilles-console-image-achilles-v2-lite.wic kirkstone-2023.07 e7cc780645b5ae2332e56fedd92e4489
achilles-console-image-achilles-v2-turbo.wic kirkstone-2023.07 ea4766829dce6c8853916aefee9086a3
achilles-console-image-achilles-v5-indus.wic kirkstone-2023.07 35d28b87edadb77083c74f1220ab2680
achilles-console-image-achilles-v5-lite.wic kirkstone-2023.07 3b4b9867ca9d1fec690dd1486f4b845d

Prerequisites for Programming eMMC

Note: when using the eMMC Programming script, you must still setup a TFTP server and complete Steps 1 - 3 below. The remaining steps are done automatically by the programming script.

In order to write a full eMMC image or update any partition of the eMMC, it is necessary to setup a TFTP server and boot the Achilles SOM from the network instead of booting from the eMMC. This is necessary in most cases (especially for full WIC image programming) because we don't want to modify a live mounted eMMC that we just booted from. Booting an initramfs from TFTP leaves the eMMC unmounted and safe to modify. REFLEX CES provides the example design RefDesign_HPS_boot_from_FPGA in the Achilles board support package that faciltates this process. You can configure the Arria® 10 FPGA with the .sof image that contains U-Boot running from FPGA on-chip RAM, which then boots the initramfs image containing the Linux kernel and minimal root filesystem running from RAM. Once fully booted, you can then use standard Linux commands to program the eMMC. It is not necessary to recompile this reference design in Quartus. Downloading and configuring the FPGA with this design is done automatically by the programming script.

The zImage Linux kernel with embedded initramfs can be downloaded from the links in the table or by using the command line examples below:

SOM Version File Name Description md5sum
V2 Turbo linuxDT.dtb Linux devicetree binary 4b7301146c1f148006440f7f63c2399b
zImage Linux kernel image with initramfs 957e27a44e286975ad674f9545106fc8
V2 Indus linuxDT.dtb Linux devicetree binary 93d9b250c05ec63930ee4f2f2a967af2
zImage Linux kernel image with initramfs 1a43531bb37d4d421d5016c5e1c52879
V2 Lite linuxDT.dtb Linux devicetree binary ea379d51668c5a5574a5a8603dbac9b6
zImage Linux kernel image with initramfs 5b3e731a57cbeca4340f149f7a3e7ca4
V5 Indus linuxDT.dtb Linux devicetree binary d9ad385183620563336a89ae94a7a4e0
zImage Linux kernel image with initramfs 9bef9b5987012f0562103117792052f2
V5 Lite linuxDT.dtb Linux devicetree binary 865f7c055a575bc8422f2c24ad0cbe50
zImage Linux kernel image with initramfs efdf57b80dd2185cc520ba43eb3580b5

For V2 Turbo SOM:

wget https://raw.githubusercontent.com/reflexces/build-scripts/2023.07/prog-files/tftp-boot-files/SomA10-V2/Turbo/linuxDT.dtb
wget https://raw.githubusercontent.com/reflexces/build-scripts/2023.07/prog-files/tftp-boot-files/SomA10-V2/Turbo/zImage

For V2 Indus SOM:

wget https://raw.githubusercontent.com/reflexces/build-scripts/2023.07/prog-files/tftp-boot-files/SomA10-V2/Indus/linuxDT.dtb
wget https://raw.githubusercontent.com/reflexces/build-scripts/2023.07/prog-files/tftp-boot-files/SomA10-V2/Indus/zImage

For V2 Lite SOM:

wget https://raw.githubusercontent.com/reflexces/build-scripts/2023.07/prog-files/tftp-boot-files/SomA10-V2/Lite/linuxDT.dtb
wget https://raw.githubusercontent.com/reflexces/build-scripts/2023.07/prog-files/tftp-boot-files/SomA10-V2/Lite/zImage

For V5 Indus SOM:

wget https://raw.githubusercontent.com/reflexces/build-scripts/2023.07/prog-files/tftp-boot-files/SomA10-V5/Indus/linuxDT.dtb
wget https://raw.githubusercontent.com/reflexces/build-scripts/2023.07/prog-files/tftp-boot-files/SomA10-V5/Indus/zImage

For V5 Lite SOM:

wget https://raw.githubusercontent.com/reflexces/build-scripts/2023.07/prog-files/tftp-boot-files/SomA10-V5/Lite/linuxDT.dtb
wget https://raw.githubusercontent.com/reflexces/build-scripts/2023.07/prog-files/tftp-boot-files/SomA10-V5/Lite/zImage

Whether you already have a TFTP server setup, or you need to configure one first, it is necessary to change or set some parameters to match the expected values specified in the U-Boot environment variables used in the “RefDesign_HPS_boot_from_FPGA” reference design. The default U-Boot environment values are summarized in the table below. Refer to the Achilles Reference Manual "HPS Development" chapter for addtional details.

TFTP Server Parameter u-boot env variable setting
server IP address (v2): 192.168.1.200 serverip=192.168.1.200
server path: SomA10-V2/Turbo/ tftppath=SomA10-V2/Turbo/
server path: SomA10-V2/Indus/ tftppath=SomA10-V2/Indus/
server path: SomA10-V2/Lite/ tftppath=SomA10-V2/Lite/
server IP address (v5): 192.168.200.200 serverip=192.168.200.200
server path: SomA10-V5/Indus/ tftppath=SomA10-V5/Indus/
server path: SomA10-V5/Lite/ tftppath=SomA10-V5/Lite/

These files must be located in the TFTP server path specified in the tftppath variable (see download information above):

File Name u-boot env variable setting
linuxDT.dtb fdtfile=linuxDT.dtb
zImage bootimage=zImage

With a network managed by a DHCP server, interrupt the boot process in U-Boot and modify some U-Boot environment variables with the commands:

setenv serverip <tftp-server-ip-addr>
setenv rxcethboot "setenv bootargs console=ttyS0,115200 ip=dhcp ; bootz ${loadaddr} - ${fdtaddr}"
setenv rxcethload "dhcp ; tftp ${loadaddr} ${tftppath}${bootimage} ; tftp ${fdtaddr} ${tftppath}${fdtimage} ;"
# Restart the boot process
run bootcmd

On a network without a DHCP server, interrupt the boot process in U-Boot and modify some U-Boot environment variables with the commands:

setenv ipaddr <board-ip-addr>
setenv serverip <tftp-server-ip-addr>
setenv rxcethboot "setenv bootargs console=ttyS0,115200 ip=none ; bootz ${loadaddr} - ${fdtaddr}"
setenv rxcethload "tftp ${loadaddr} ${tftppath}${bootimage} ; tftp ${fdtaddr} ${tftppath}${fdtimage} ;"
# Restart the boot process
run bootcmd

After changing the variables, you can make them permanent by using the saveenv command before restarting the boot process by using the run bootcmd command.

Writing Full WIC Image to eMMC

Once the TFTP server is setup, you can perform a network boot and program the Achilles eMMC by following these steps. Some knowledge of connecting to the Achilles SOM usinng terminal emulator software (e.g. PuTTY, Minicom, etc) and use of the Quartus Programmer is assumed for these steps. Refer to the Achilles Reference Manual if you need assistance.

Boot the initramfs Image

  1. With the Achilles SOM and carrier board powered off, carefully remove the SOM from the carrier board and move the MSEL1 switch on the reverse side of the board to the ON position as shown in the image below. This will enable the FPP x32 configuration mode of the Arria® 10 FPGA, as required for the HPS to configure the FPGA.

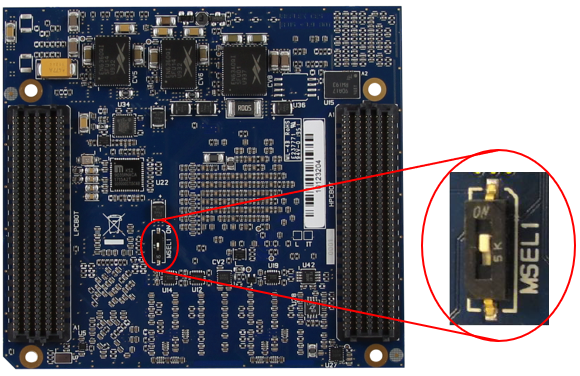

    MSEL Switch Setting

  2. Plug the SOM back into the carrier board. Plug in a microUSB cable between the host PC and the microUSB connector on the carrier board labeled “BLASTER”. Plug in an Ethernet cable between your network router and the RJ-45 Ethernet port labeled “ETH1”. Verify that the BSEL pins are set as shown in the image below (0x5) to enable boot from 3.0V SD/MMC flash.
    %IMAGE{"som-carrier.png" height="400"}%

  3. Open your preferred terminal emulator software. Power on the board and establish a connection between the board and the terminal emulator. If using the Achilles SOM in factory condition, you should not see any output on the terminal at this time because the new MSEL switch position will prevent FPGA configuration in AS mode. If you have already programmed the eMMC with this example image and U-Boot loads the FPGA core.rbf file, you will need to interrupt the boot process at U-Boot to prevent core.rbf programming. Otherwise, the Quartus programmer will fail in the next step.

  4. Open the Quartus Programmer tool and click the “Hardware Setup” button and establish a connection to the Achilles SOM (“Arria10 IDK”). Auto detect the JTAG chain and accept all detected device defaults. Click to select the Arria® 10 device in the list and click "Add File" to add a programming file. Browse to the location of the .sof file downloaded from the link above and select it. If a second Arria® 10 device appears in the list below the one with the file just added, then delete it. Check the “Program/Configure” box, and click "Start" to program the FPGA. Once programming completes, you should start to see output to the serial terminal.

Option 1: Program the eMMC (through USB key)

  1. Copy the Yocto generated WIC image on a USB key and plug the USB key in the USB OTG port of the Carrier Board.

    NOTE: The USB adapter must be On-The-Go compliant.

  2. On Achilles SOM serial terminal emulator session, mount the USB key partition.

    mkdir -p /mnt/key
mount -o ro /dev/sda1 /mnt/key

  3. On Achilles SOM serial terminal emulator session, clone the image file to the eMMC. There is no need to mount the eMMC device first to clone the full image.

    dd if=/mnt/key/achilles-console-image-achilles-v5-indus.wic of=/dev/mmcblk0 && sync

  4. After the cloning process is complete, shut down the initramfs session on Achilles:

    poweroff

  5. Power cycle the Achilles board. Do not just issue a reboot command from the Linux command prompt; you must power cycle the board after the dd process completes. You should now observe the boot process in your terminal emulator. First, the FPGA periphery image is loaded by the SPL. The SPL then loads the u-boot.img file from the FAT partition and U-Boot starts. The FPGA core image is then programmed by U-Boot and then the Linux kernel, devicetree, and root filesystem are loaded. You should finally arrive at the Poky linux prompt.

Option 2: Program the eMMC (through Ethernet)

  1. If the board is connected on a network with a DHCP server, find the IP address assigned to the board. Otherwise, set a static IP address to the board.

    Get Ethernet IP addresses on Achilles SOM via serial terminal emulator:

    ip address show up

    If needed, set eth0 static IP address on Achilles SOM via serial terminal emulator:

    ip link set eth0 up
ip address add 192.168.200.42/24 dev eth0

  2. To copy the Yocto generated WIC image to the Achilles eMMC, open a terminal window on your Linux host and browse to the directory containing the WIC image.

  3. Copy the WIC image to the initramfs session running on the Achilles SOM:

    scp achilles-console-image-achilles-v5-indus.wic root@<board-ip-addr>:/

    Be sure to enter the correct IP address for the Achilles board that you noted in step 6.a above. Type yes to accept the connection and then enter the Achilles initramfs password root. The file will take about 2 minutes to transfer.

  4. After the transfer is complete, go back to the Achilles serial terminal emulator session and clone the image file to the eMMC. There is no need to mount the eMMC device first to clone the full image.

    dd if=achilles-console-image-achilles-v5-indus.wic of=/dev/mmcblk0 && sync

  5. Continue at the step 5.d in the previous chapter.

Updating Individual eMMC Partitions

If you want to update individual files on any of the partitions, follow the steps above to load the initramfs image over your network. Then copy the files you want to update to the corresponding Achilles eMMC partition. Note that you can update individual eMMC partitions on the REFLEX CES factory default eMMC layout with the binary files provided here, but you will need to update several U-Boot environment variables to point to the correct FAT partition.

Mount the partition you want to update:

Partition 1 (FAT)

On Achilles SOM via serial terminal emulator:

mkdir -p /media/emmcp1; mount -t vfat /dev/mmcblk0p1 /media/emmcp1; cd /media/emmcp1

On Linux host, copy files to the mounted partition:

scp <filename> root@<board-ip-addr>:/media/emmcp1

Partition 2 (A2)

It is not necessary to mount the raw A2 partition to update it with a new U-Boot/SPL image: On Linux host, copy files to root (/) on the initramfs session:

scp <u-boot-spl-image-name> root@<board-ip-addr>:/

On Achilles SOM via serial terminal emulator:

dd if=<u-boot-spl-image-name> of=/dev/mmcblk0p2 && sync

Partition 3 (EXT4)

NOTE: This step is only required if you booted from the initramfs and the eMMC is not mounted. If booting to Poky Linux from eMMC, it is not necessary to mount this partition since it is already mounted. On Achilles SOM via serial terminal emulator:

mkdir -p /media/emmcp3; mount -t ext4 /dev/mmcblk0p3 /media/emmcp3; cd /media/emmcp3

On Linux host, copy files to the mounted partition:

scp <rootfs_archive.tar.xz> root@<board-ip-addr>:/media/emmcp3
or

scp <new_fpga_prog_file.rbf> root@<board-ip-addr>:/lib/firmware

When file copying is complete, shut down the initramfs session on Achilles:

poweroff

Power cycle the Achilles board.

Creating Your Own eMMC Image

If you built the individual hardware and software system components and want to create your own eMMC image, you can follow the example available on the Building Bootloader article page. Scroll down to section C. Build SD Card Image. Then follow the steps above to clone the image to the Achilles eMMC.
